Interpolation

:material-circle-edit-outline: 约 746 个字 :material-image-multiple-outline: 10 张图片 :material-clock-time-two-outline: 预计阅读时间 7 分钟

3.1 Interpolation and the Lagrange Polynomial

One of the most useful classes of functions mapping the st of real numbers into itself is algebraic polynomials.
\(P_n(x) = a_0 + a_1x + a_2x^2 + \cdots + a_nx^n\) One reason for their importance is that they uniformly approximate continuous functions.

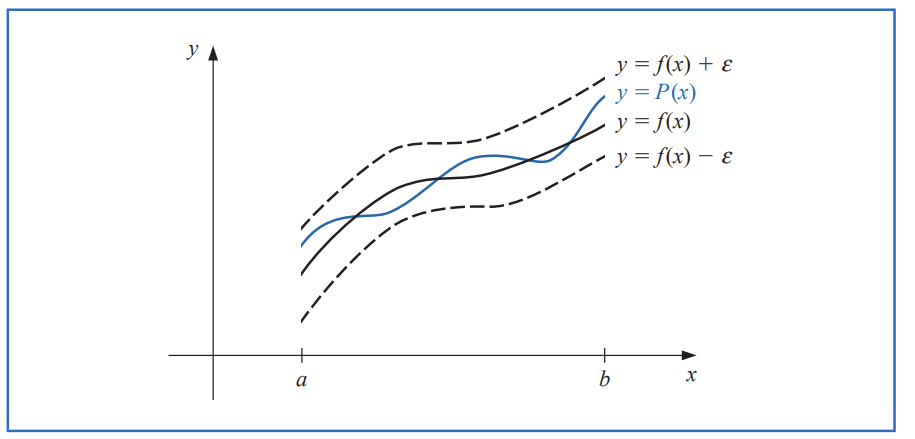

Theorem 3.1: (Weiertrass Approximation Theorem
Let \(f\) be a continuous function on the interval \([a, b]\). Then, for every \(\epsilon > 0\), there exists a polynomial \(P(x)\) such that
\(|f(x) - P(x)| < \epsilon\), for all \(x \in [a, b]\).
the derivative and indefinite integral of a polynomial are easy to determine

The difference between polynomial interpolation and the Taylor polynomials

The Taylor polynomials agree as closely as possible with a given function at a specific point, but they concentrate their accuracy near that point. A good interpolation polynomial needs to provide a relatively accurate approximation over an entire interval

Lagrange Interpolating Polynomial
* Polynomial interpolation definition: The problem of determining a polynomial of degree one that passes through the distinct points (x0, y0) and (x1, y1) is the same as approximating a function f for which f (x0) = y0 and f (x1) = y1 by means of a first-degree polynomial interpolating, or agreeing with, the values of f at the given points. Using this polynomial for approximation within the interval given by the endpoints is called polynomial interpolation.

• The n th Lagrange interpolating polynomial is defined as:
  Theorem 3.2: (Lagrange Interpolating Polynomial)
  Given n + 1 distinct points \((x_0, y_0), (x_1, y_1), \cdots, (x_n, y_n)\), there exists a unique polynomial \(P_n(x)\) of degree at most n that passes through these points. This polynomial is given by \(\(P_n(x) = y_0L_0(x) + y_1L_1(x) + \cdots + y_nL_n(x)\)\)
  where the Lagrange basis functions \(L_k(x)\) are defined by
  \(\(L_k(x) = \frac{(x - x_0)(x - x_1)\cdots(x - x_{k-1})(x - x_{k+1})\cdots(x - x_n)}{(x_k - x_0)(x_k - x_1)\cdots(x_k - x_{k-1})(x_k - x_{k+1})\cdots(x_k - x_n)}\)\)

3.3 Divided Difference

Divided Difference
\(P_n(x)=a_0+a_1(x-x_0)+a_2(x-x_0)(x-x_1)+\cdots+a_n(x-x_0)(x-x_1)\cdots(x-x_{n-1})\)
the main purpose is to calulate the coefficients \(a_0, a_1, \cdots, a_n\) recursively
Theorem 3.3: (Divided Difference)
Given n + 1 distinct points \((x_0, y_0), (x_1, y_1), \cdots, (x_n, y_n)\), the divided difference \(f[x_0, x_1, \cdots, x_k]\) is defined by
\(\(f[x_0, x_1, \cdots, x_k] = \frac{f[x_1, x_2, \cdots, x_k] - f[x_0, x_1, \cdots, x_{k-1}]}{x_k - x_0}\)\)
with \(f[x_i] = y_i\) for \(i = 0, 1, \cdots, n\).
therefore, the interpolating polynomial can be written as:
\(\(P_n(x) = f[x_0] + f[x_0, x_1](x - x_0) + f[x_0, x_1, x_2](x - x_0)(x - x_1) + \cdots + f[x_0, x_1, \cdots, x_n](x - x_0)(x - x_1)\cdots(x - x_{n-1})\)\)
Newton's Divided Difference Interpolating Polynomial

INPUT numbers \(x_0,x_1,\cdots,x_n\) and values \(f(x_0),f(x_1),\cdots,f(x_n)\) as \(F_{0,0},F_{1,0},\cdots,F_{n,0}\)
OUTPUT the numbers of \(F_{0,0}, F_{1,1}, \cdots, F_{n,n}\) where
\(P_n(x)=F_{0,0}+\sum_{i=1}^{n}F_{i,i}\prod_{j=0}^{i-1}(x-x_j)\)
for \(i=1,2,\cdots,n\) do
for \(j=0,1,\cdots,i\) do
\(F_{i,j}=\frac{F_{i,j}-F_{i-1,j-1}}{x_i-x_{i-j}}\)
return \(F_{0,0},F_{1,1},\cdots,F_{n,n}\)

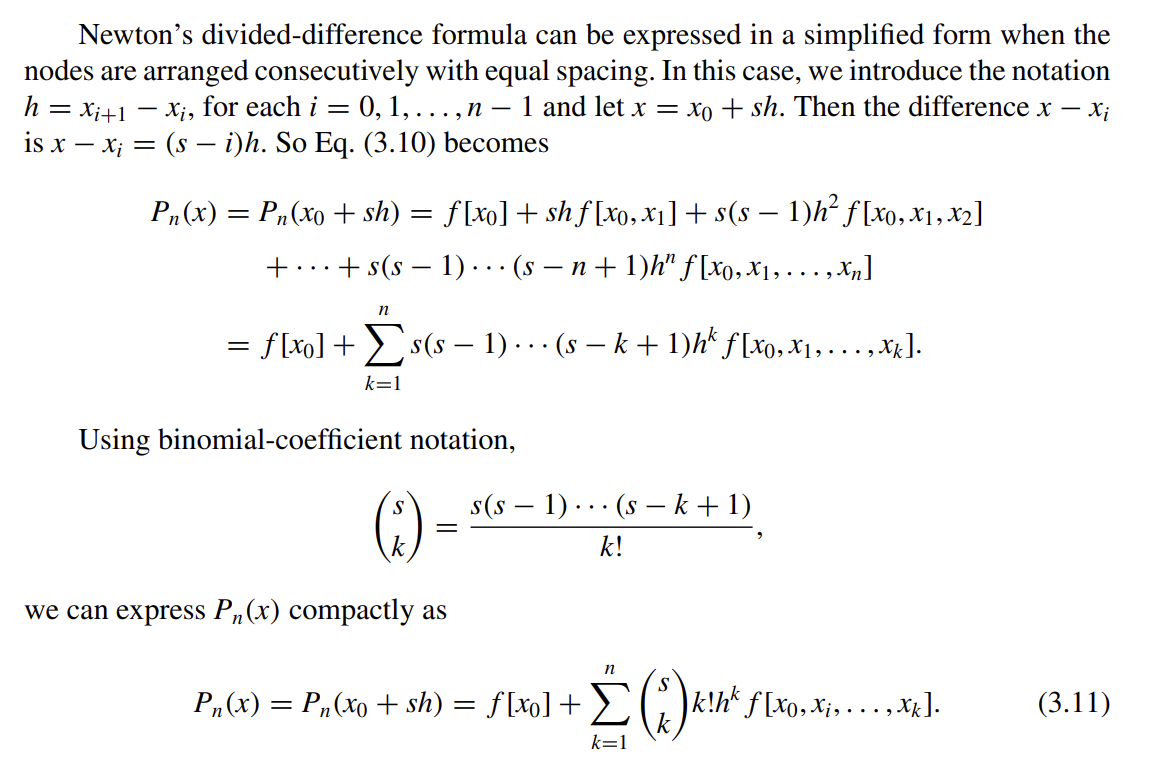

Theorem 3.6: (Newton's Divided Difference Interpolating Polynomial)

Note

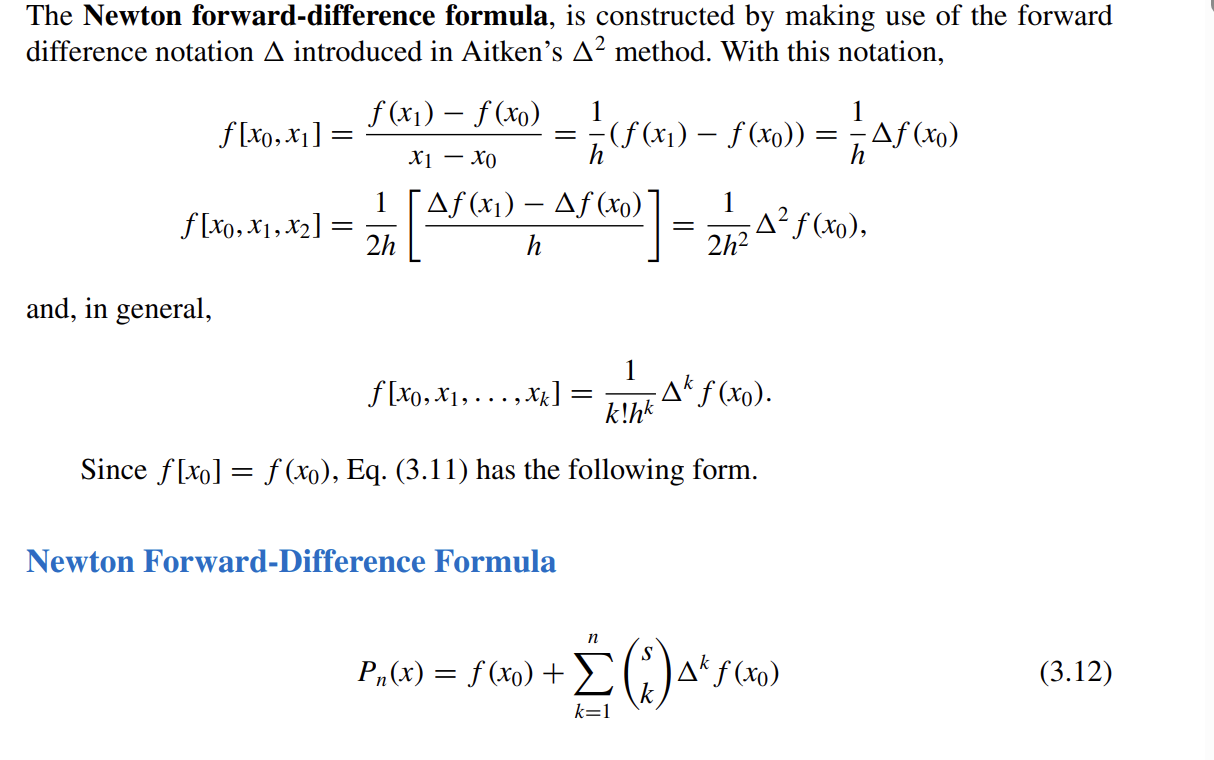

Newton forward-difference formula

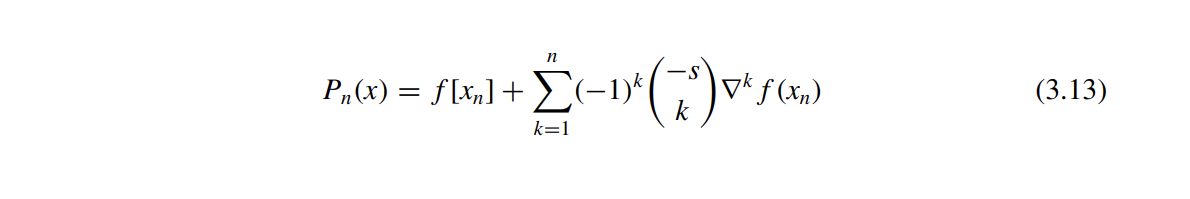

Newton backward-difference formula

Tip

when we need to calculate a value of \(f(x)\) at a point \(x\) that is not in the table, we choose the Newton forward-difference formula or the Newton backward-difference formula by calculating whether the difference between \(x\) and the first point in the table is smaller or larger than the difference between \(x\) and the last point in the table. because s is relatively smaller, hence the amount of error can be relatively reduced when multiplying

Centered difference

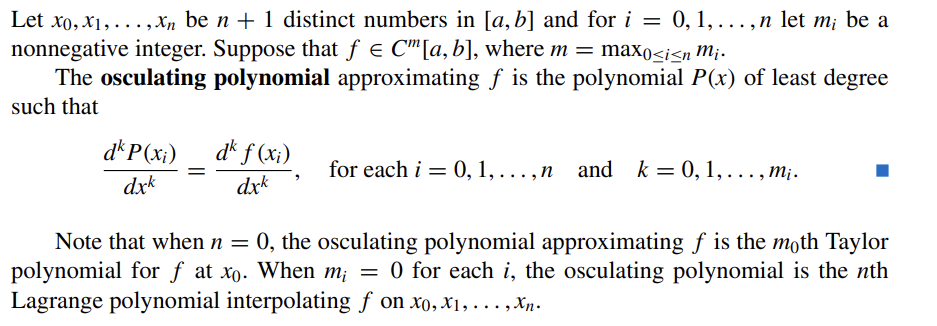

3.4 Hermite Interpolation

Hermite Interpolating Polynomial

3.5 Cubic Spline Interpolation

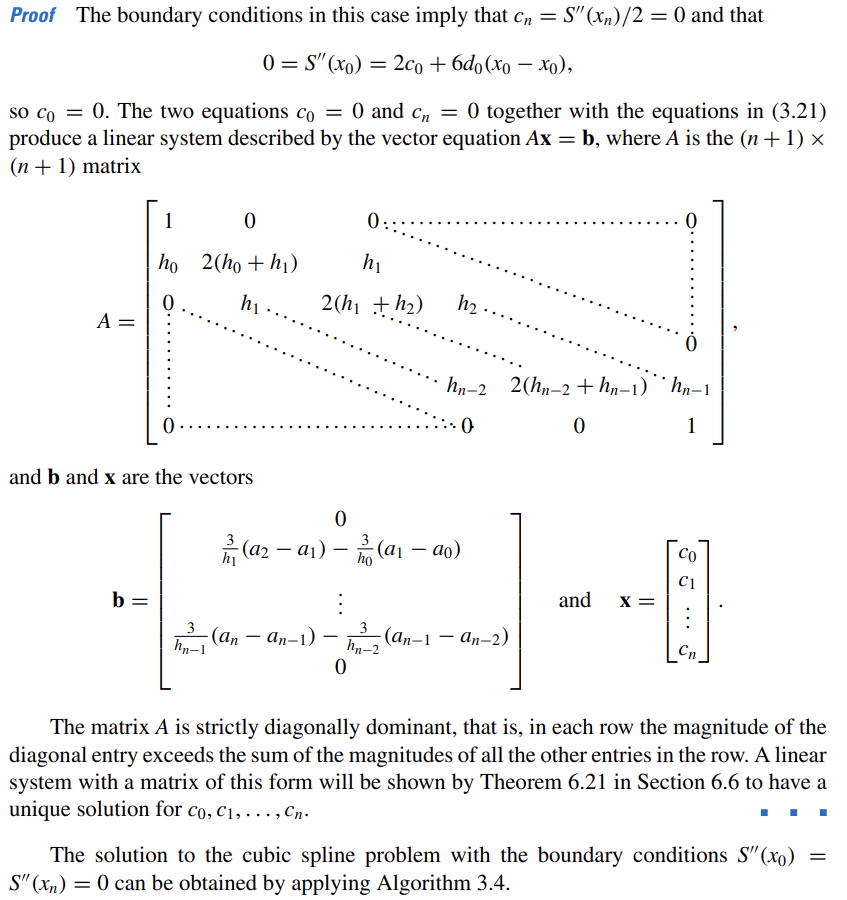

Natural Splines
If f is defined at a = x0 < x1 < ··· < xn = b, then f has a unique natural spline interpolant S on the nodes x0, x1, ..., xn; that is, a spline interpolant that satisfies the natural boundary conditions \(S''(a)\) and \(S''(b)\) = 0.

Note

\(h_{j-1}c_{j-1}+2(h_{j-1}+h_j)c_j+h_jc_{j+1}=3\left(\frac{f(x_{j+1})-f(x_j)}{h_j}-\frac{f(x_j)-f(x_{j-1})}{h_{j-1}}\right)\)

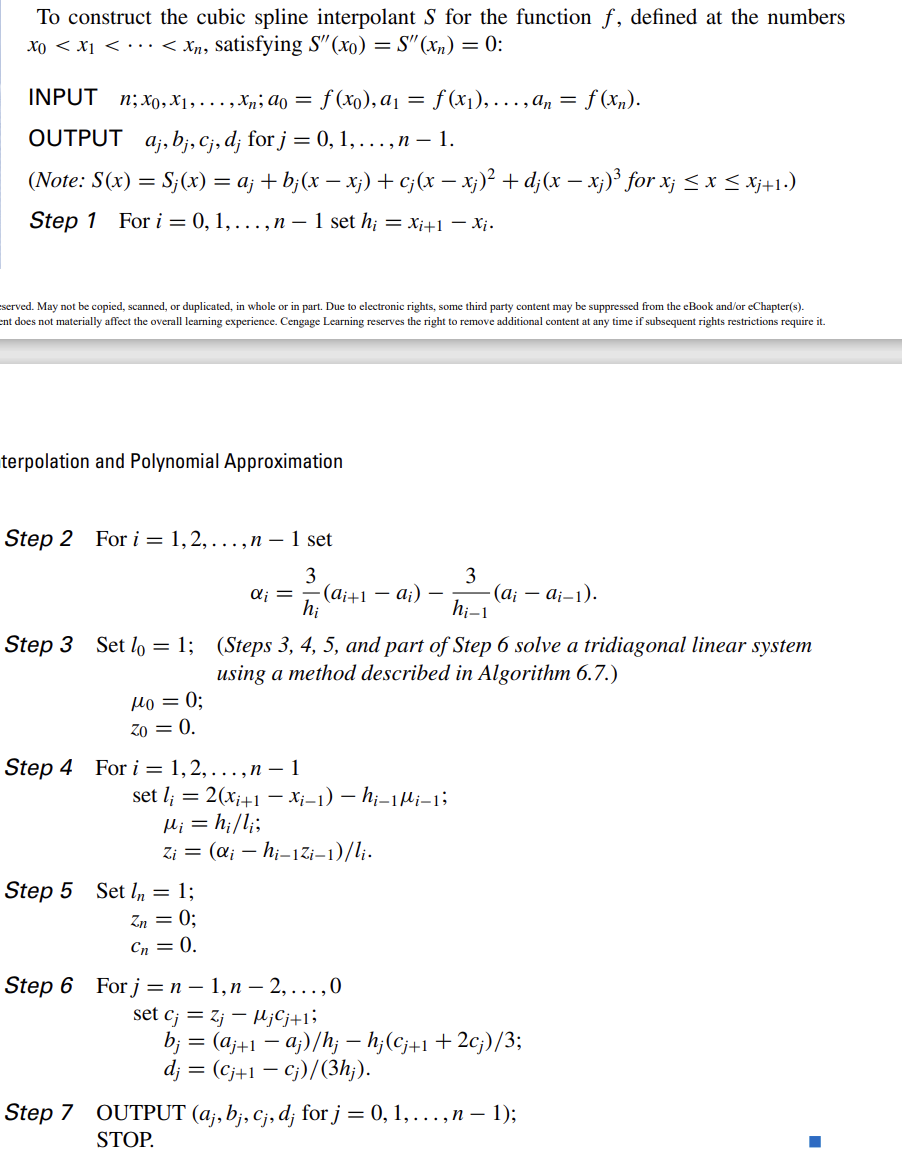

Seoducode

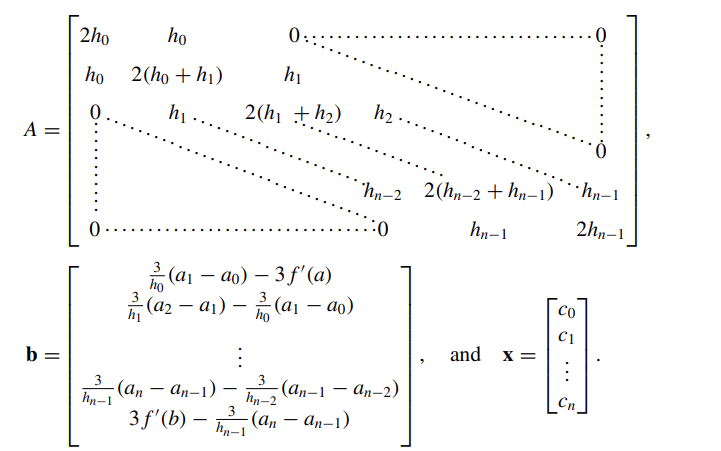

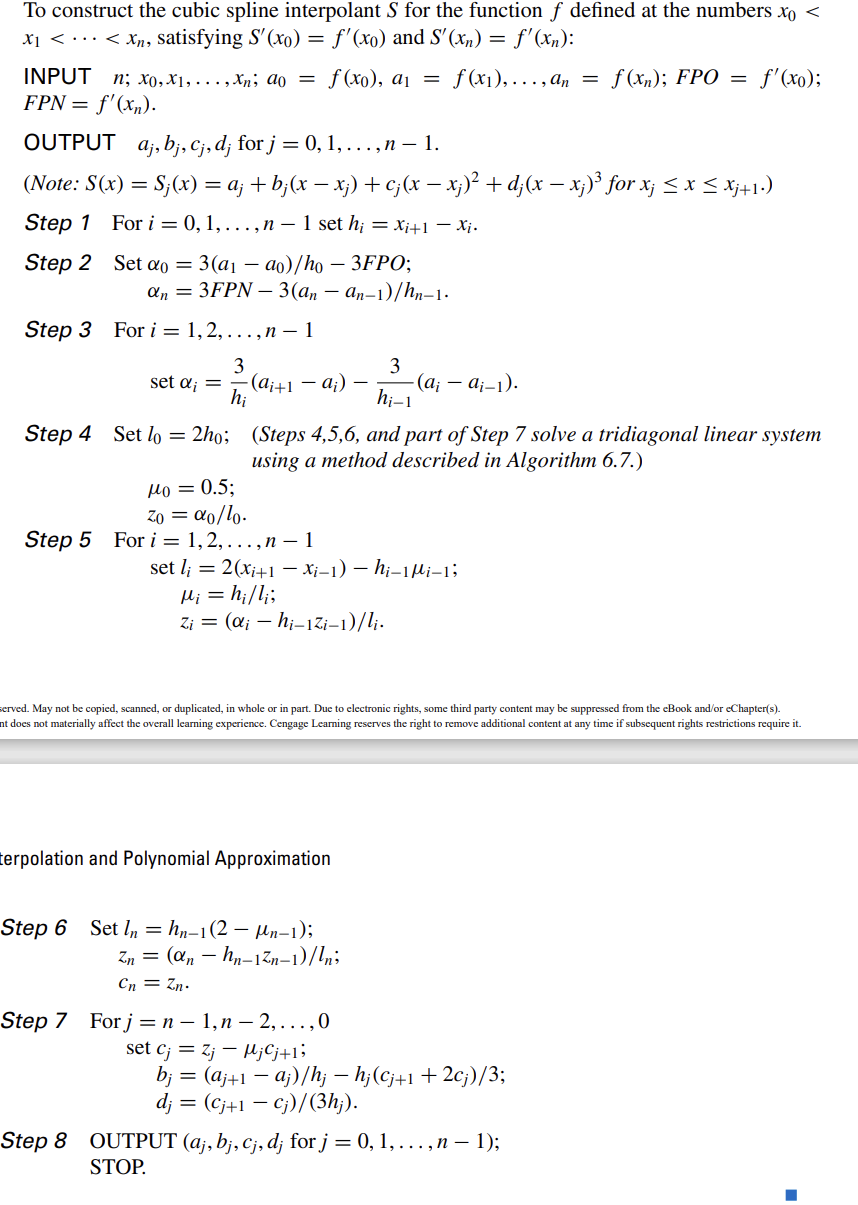

Clamped Splines

seoducode
