Mazes Algorithms

:material-circle-edit-outline: 约 299 个字 :material-image-multiple-outline: 9 张图片 :material-clock-time-two-outline: 预计阅读时间 3 分钟

Mazes

• Perfect mazes: no loops, has one and only one path between any two cells
• Unicursal mazes: no branches, a single path from start to finish
• Braid mazes: loops, but no dead ends
• weave maze: passages go over and under each other

Metrics

• All neighboring cells will be either linked or unlinked

Algorithms

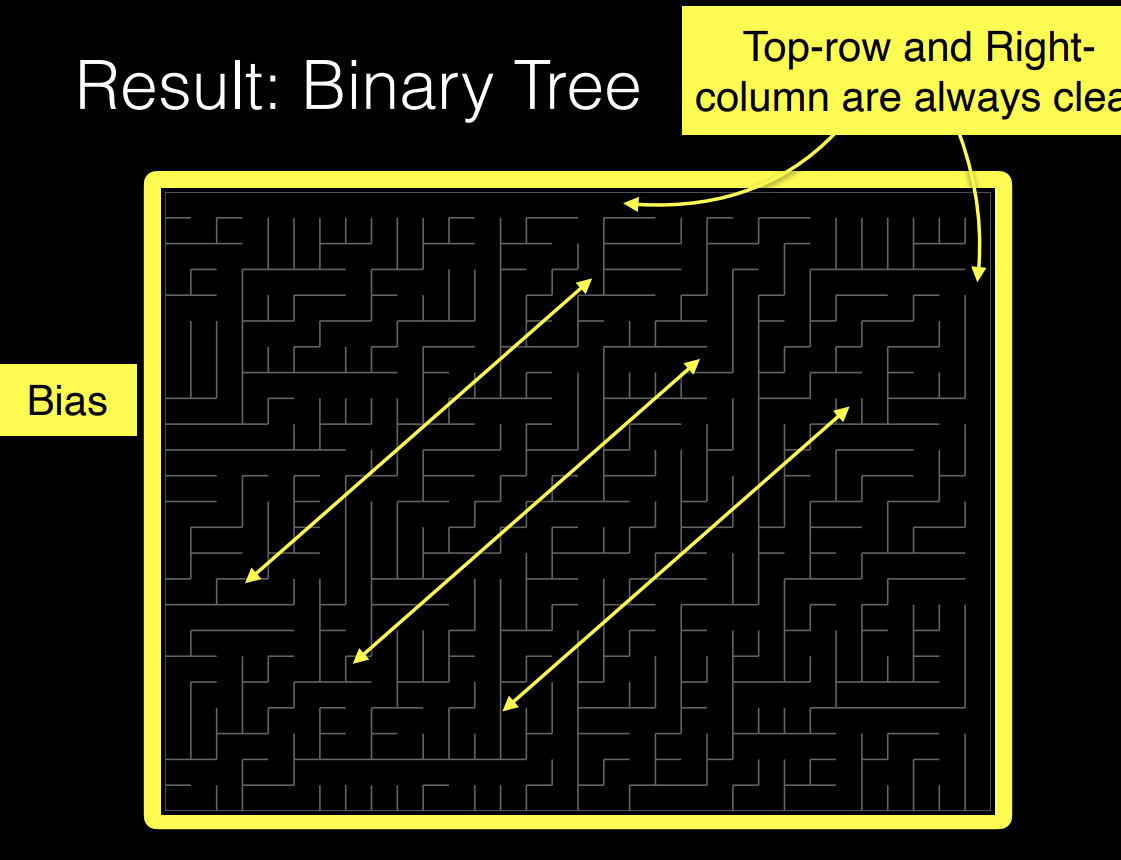

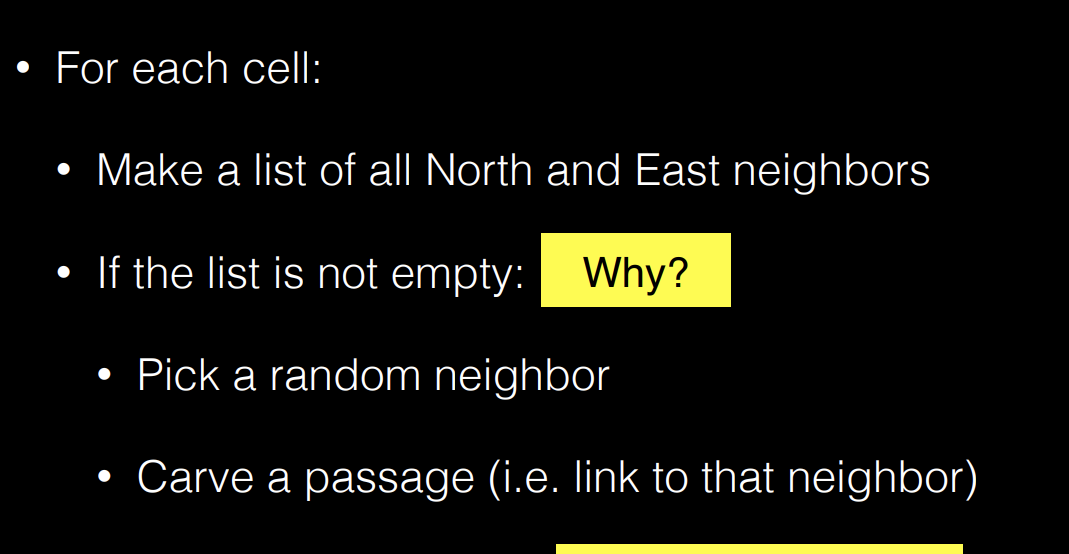

Binary Tree(a wall carving algorithm)

• Cells on the East column are all linked to their North neighbor(右侧一条线)
• Cells on the North row are all linked to their East neighbor(上侧一条线)
  Except:
• The North-East cell


  a clear path from the bottom left to the top right
  No entry or exit, yet perfect

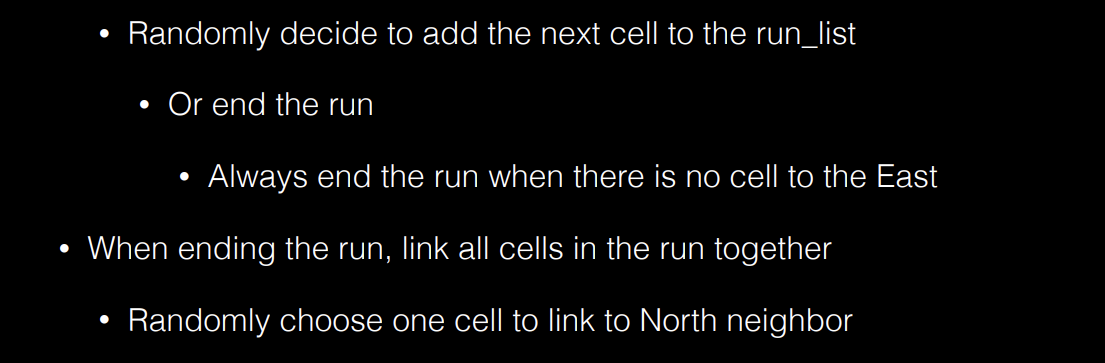

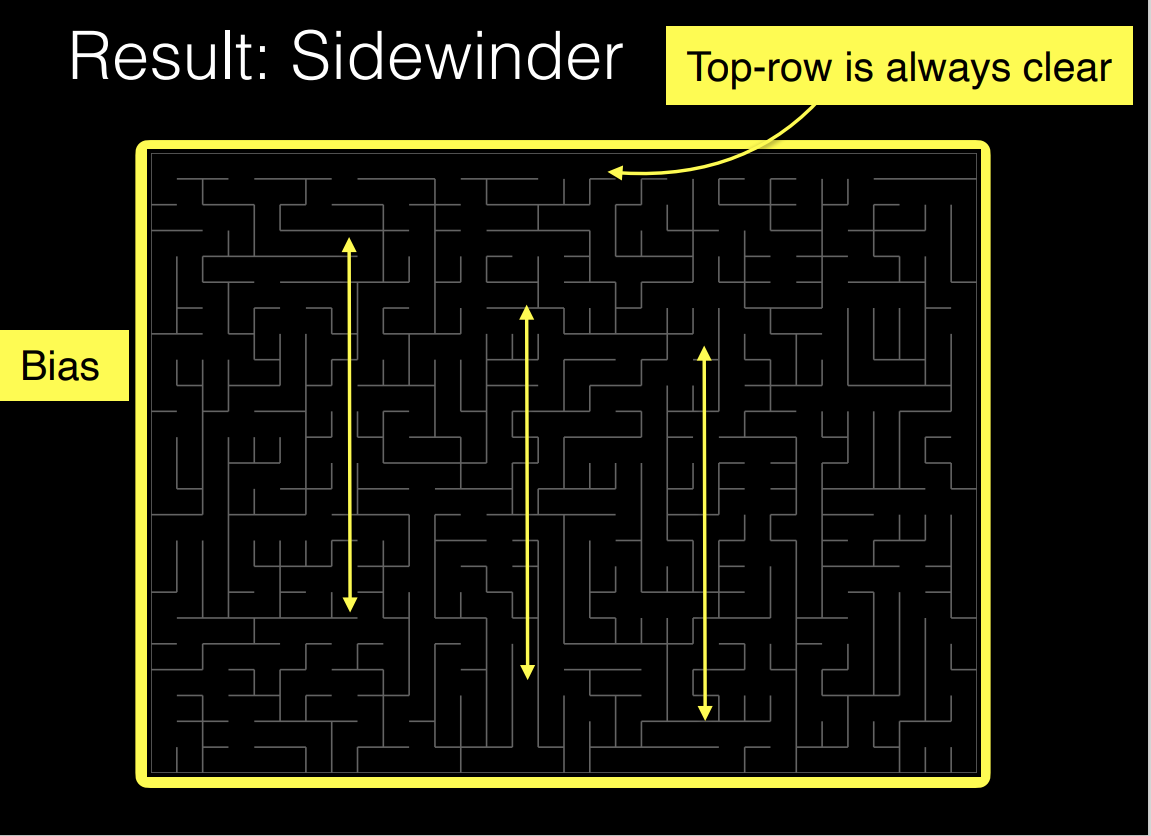

Sidewinder

• a wall carving algorithm
• Top rows: link cells together
• Other rows: Add leftmost cell to the

  top-row clear
  rows are longer, yet not linked
  cons are random, mostly blocked
  each row can be handled in parallel

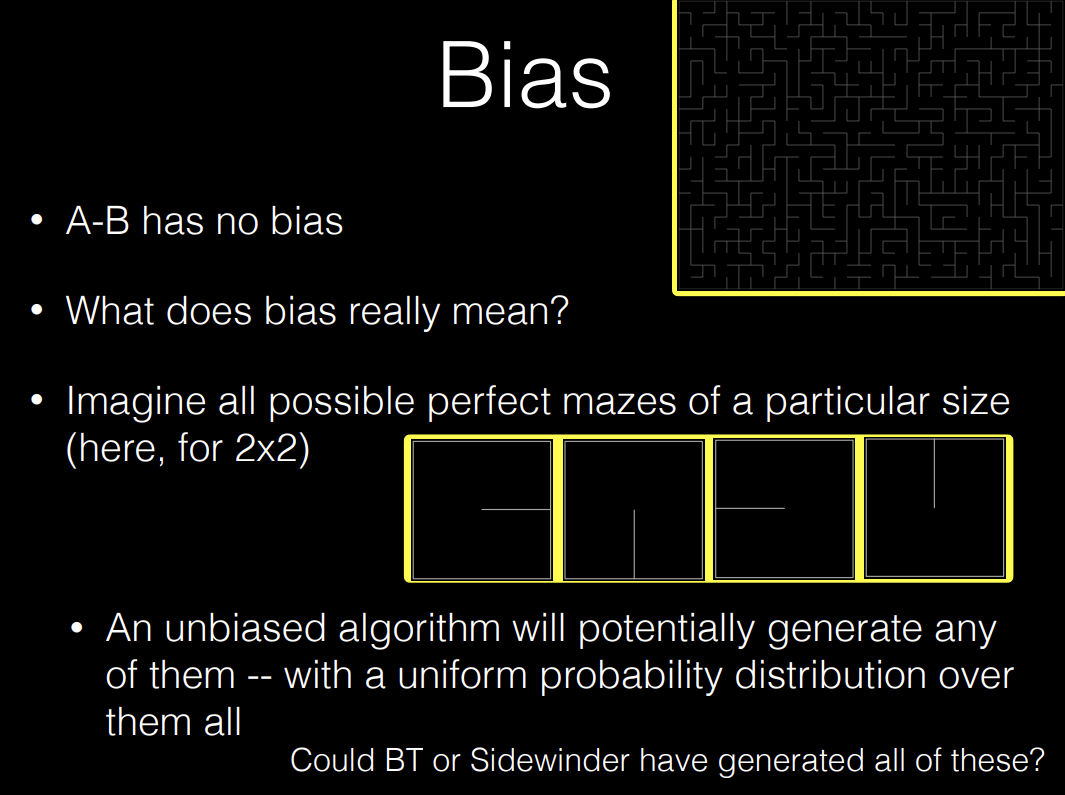

Aldous-Broder

• Random walk:
  • Randomly choose a neighbor
  • If not visited, link and move
  • If visited, move
  • Random walk until all cells are visited

    take a long time to generate

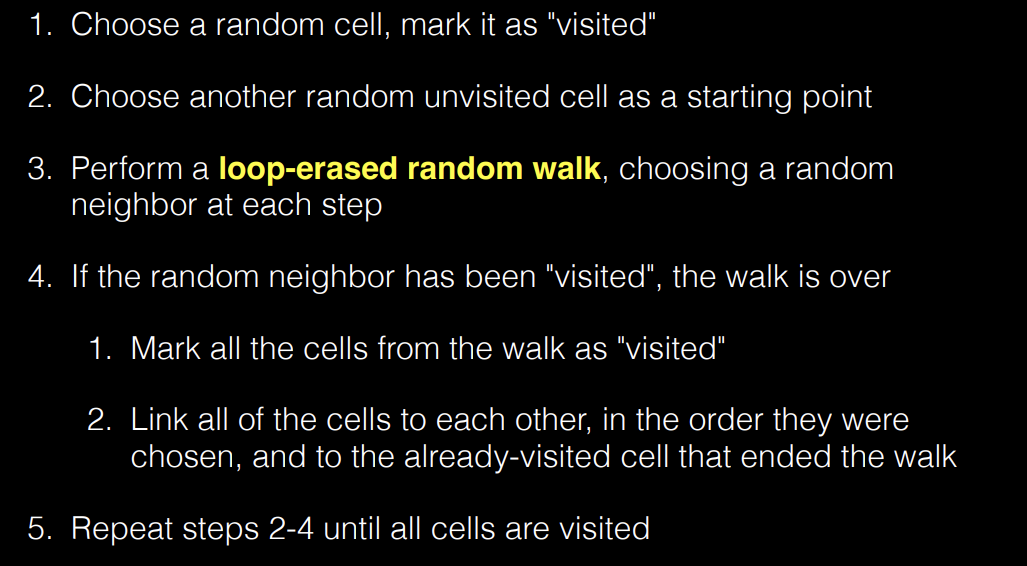

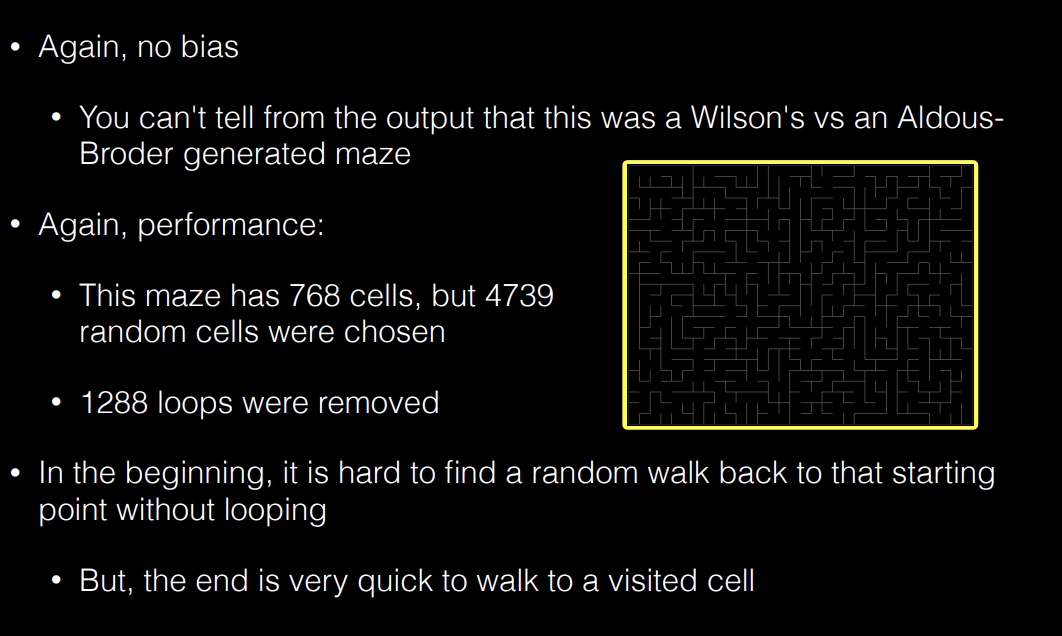

Wilson's

* in the beginning, its hard to find a random walk back to that starting point without looping
* But the end is quick

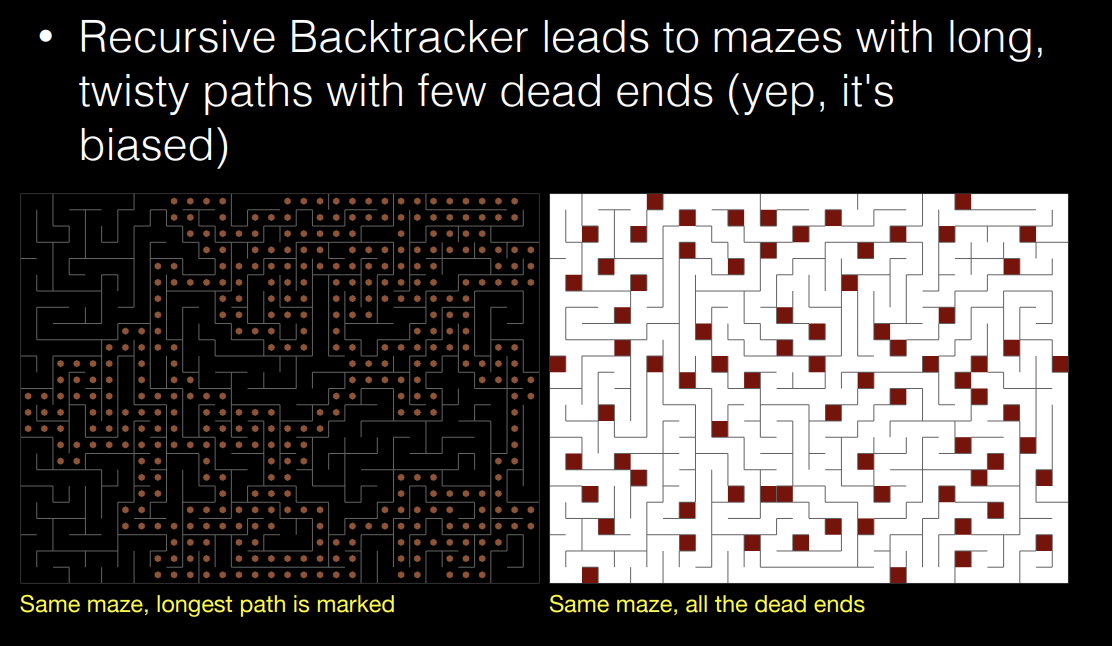

Recursive Backtracker

few dead ends yet biased
yet it is not memory-efficient (recursive calls)

Solution algorithm

• Wall follower:
  • Always follow the right wall
  • If no right wall, turn right
  • If no right wall, turn left
  • If no right wall, turn around
• Dead-end filler
• Recursive backtracker
• Trémaux's algorithm

Dijkstra's algorithm

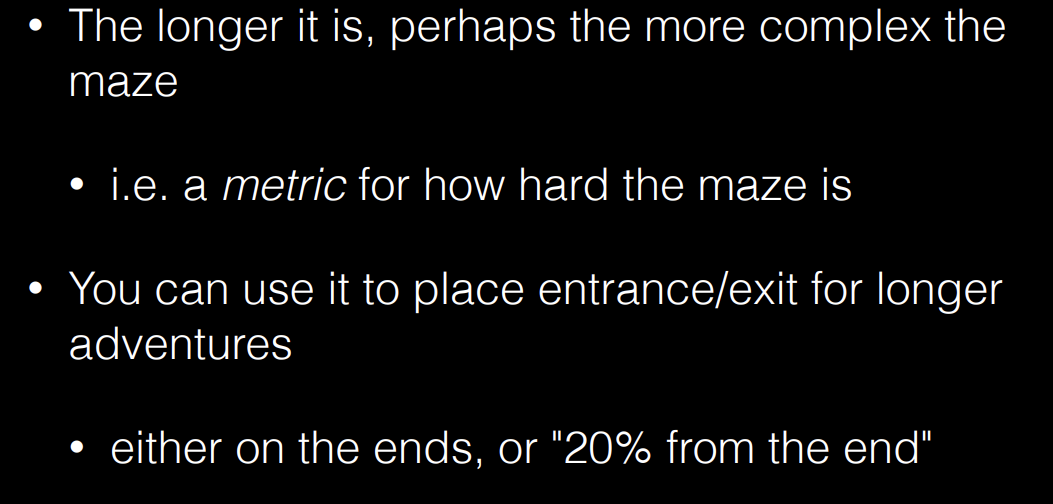

longest path:
* pick a random cell for the root(A)
* run Dijkstra's algorithm on it (find the furthest from A, call it B)
* run Dijkstra's algorithm on B (find the furthest from B, call it C)
* \(B->C\) is the longest path
