Navigation Algorithms

:material-circle-edit-outline: 约 264 个字 :material-image-multiple-outline: 4 张图片 :material-clock-time-two-outline: 预计阅读时间 3 分钟

Control

  • where control means AI
  • pay attention to "State Machines"
  • State Machines: a way of representing the state of an object and the transitions between those states

Graph

\(Graph =Set(Vertices,Edges)\)

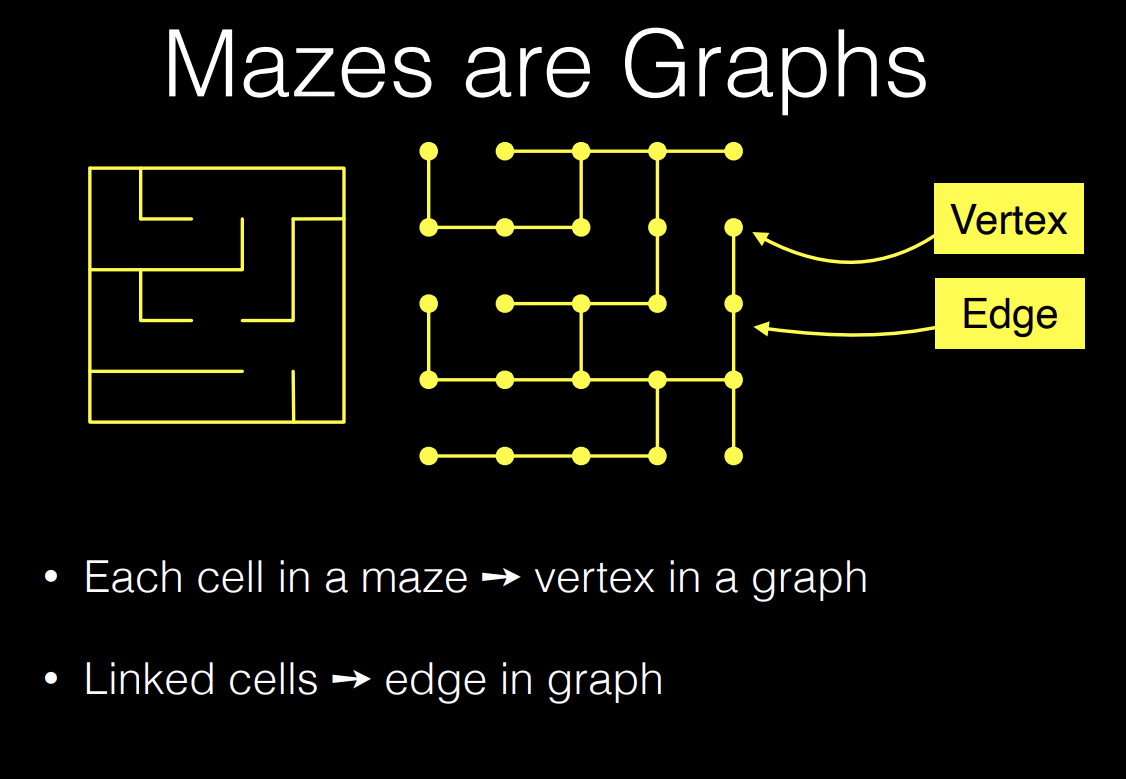

The relationship between mazes and graphs:
alt text
How big shall each vertices be?
How to approximate a line?
* Bresenham's line algorithm
* Linear interpolation
* Orthognal steps (Numerical Analysis)

single source, all destinations * Generally so Sum(cost) is minimized
* Classic Graph Search
* Breath First Search: Unweighted edges
* Dijkstra: weighted * Bellman-Ford: wieghted with negative edges
all source, all destinations
* Floyd
* Johnson's Algorithm

BFS

  • the point is to discover some destination cell
    simply look up in the dictionary is enough

Early Exit

Add a conditional choice to end the loop

Obstacles

Tip

Obstacles shall not be listed as neighbours

Dijkstra

  • use a minheap

Heuristic

Greedy+Heuristic function
* A* Algorithm
\(F(n)=G(n)+H(n)\)
* G(n): the cost of the path from the start node to n
* H(n): the heuristic function, the estimated cost from n to the goal
* A* is optimal if H(n) is admissible

  • A* at scale: takes too long
    alt text

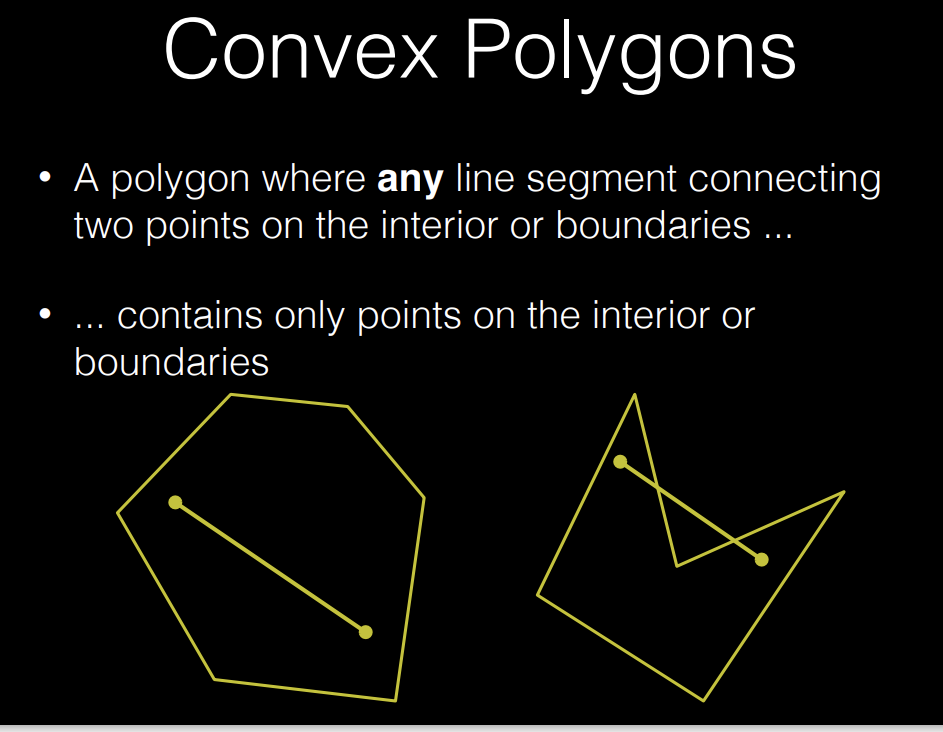

  • Navmesh: a mesh of polygons
    alt text

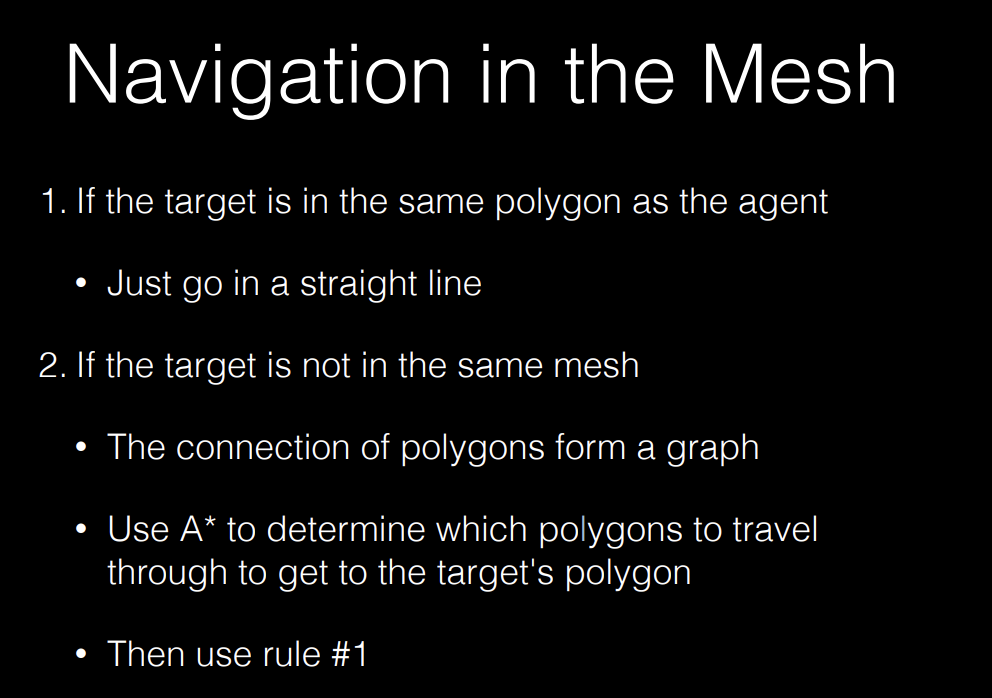

    Navigation in the mesh:
    if the target is not in the same polygon as the agent, the agent will move to the edge of the polygon (use A* to determine which mesh to cross)and then move to the target.

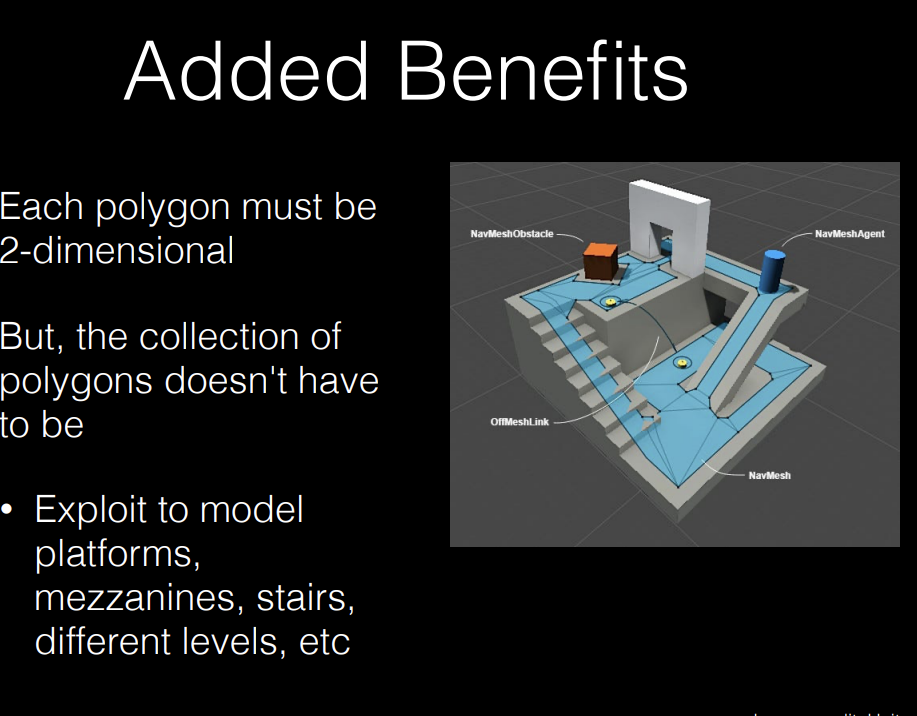

more benefit

alt text

Funnel Algorithm

  • smoothing the ideal path
  • that is choosing the vertices of the polygon and find the shortest path
  • the funnel is the area that the agent can move in
