Red-Black Trees and B+ Trees

:material-circle-edit-outline: 约 209 个字 :fontawesome-solid-code: 12 行代码 :material-image-multiple-outline: 5 张图片 :material-clock-time-two-outline: 预计阅读时间 2 分钟

Intro

• Definition:

  A red-black tree is a binary search tree that satisfies the following red-black properties: * Every node is either red or black. * The root is black. * Every leaf (NIL) is black. * If a node is red, then both its children are black. * For each node, all simple paths from the node to descendant leaves contain the same number of black nodes.

---

Black Height

• Definition:

  The black-height of any node x, denoted by bh(x), is the number of black nodes on any simple path from x (x not included) down to a leaf. bh(Tree) = bh(root).
  Proof: for any node x, \(sizeof(X) \geq 2^{bh(x)}-1\), by inducting on the height of the tree, we can get the conclusion.
  \(bh(Tree) \geq h(Tree)/2\)

---

Operations

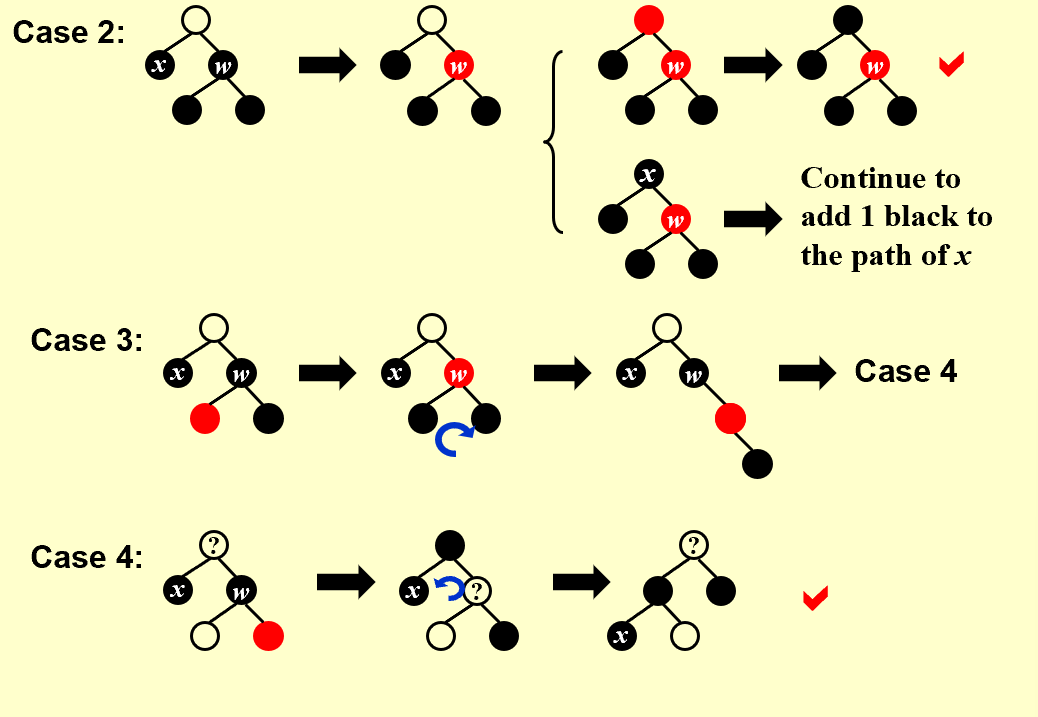

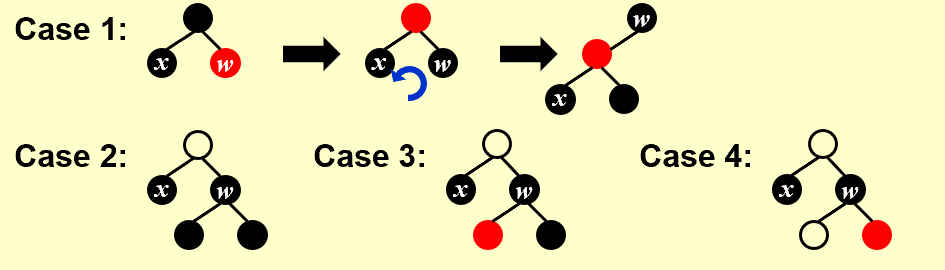

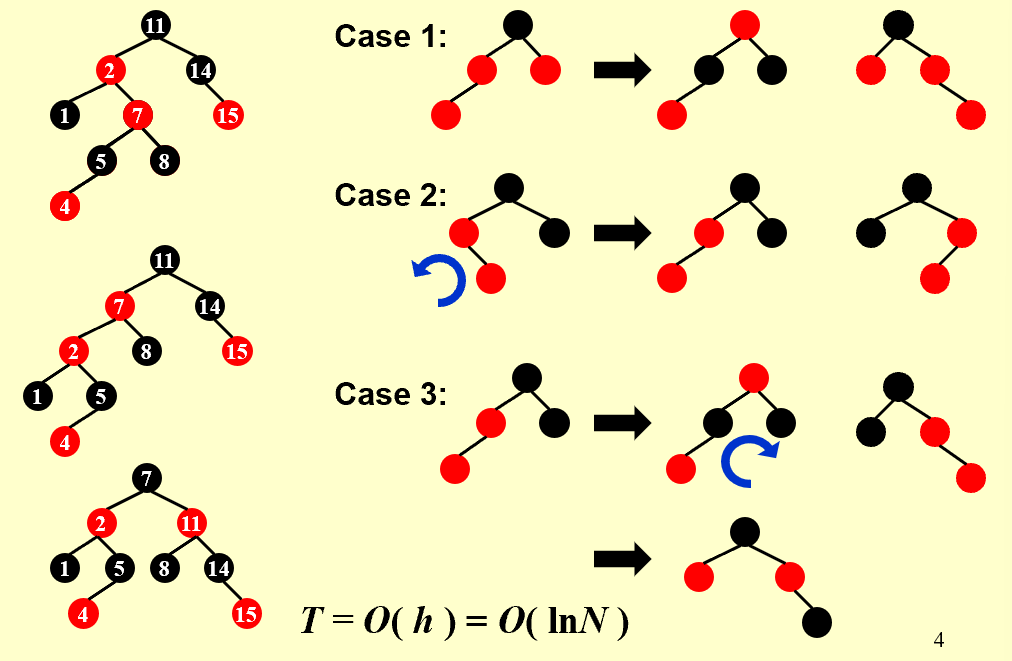

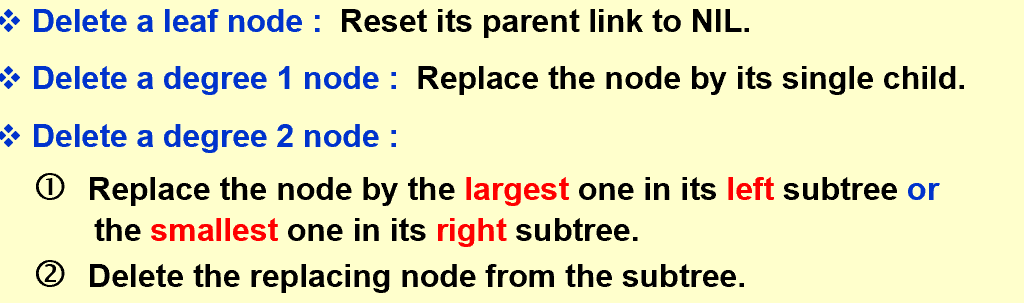

InsertDelete

Note

Note

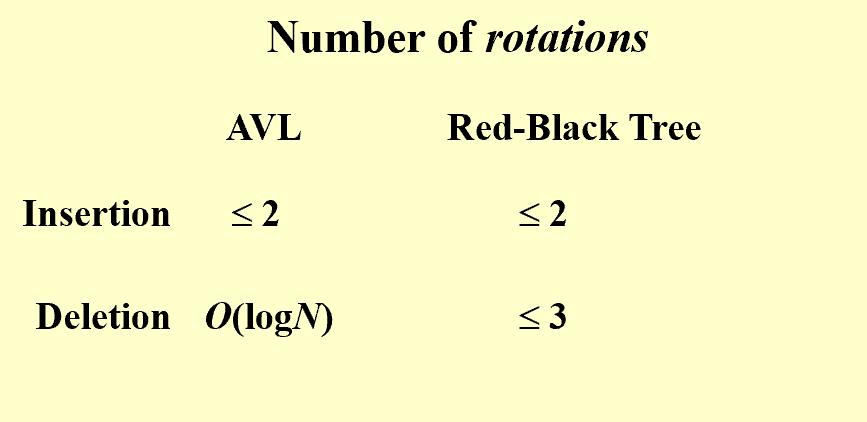

Conclusion

Tip

---

B+ Tree

• Definition:

  A B+ tree of order M is a tree with the following structural properties: * The root is either a leaf or has between 2 and M children. * All nonleaf nodes (except the root) have between \(\lceil M/2 \rceil\) and M children. * All leaves are at the same depth. Assume each nonroot leaf also has between \(\lceil M/2 \rceil\) and M children.

   Btree  Insert ( ElementType X,  Btree T )
   {
    Search from root to leaf for X and find the proper leaf node;
    Insert X;
    while ( this node has M+1 keys ) {
            split it into 2 nodes with (M+1)/2 and (M+1)/2 keys, respectively;
            if (this node is the root)
                create a new root with two children;
            check its parent;
    }
   }

\(Depth(M,N)=O(\log_{\lceil M/2 \rceil}N)\)
