Backtracking

:material-circle-edit-outline: 约 313 个字 :fontawesome-solid-code: 57 行代码 :material-image-multiple-outline: 2 张图片 :material-clock-time-two-outline: 预计阅读时间 4 分钟

Rationale of Backtracking

  • Definition:

    A sure-fire way to find the answer to a problem is to make a list of all candidate answers, examine each, and following the examination of all or some of the candidates, declare the identified answer.
    Backtracking enables us to eliminate the explicit examination of a large subset of the candidates while still guaranteeing that the answer will be found if the algorithm is run to termination.
    The basic idea is that suppose we have a partial solution \((x_1,\dots, x_i)\) where each \(x_k \in S_k\) for \(1 \leq k \leq i < n\). First we add \(x_{i+1} \in S_{i+1}\) and check if \((x_1,\dots, x_i, x_{i+1})\) satisfies the constrains. If the answer is “yes” we continue to add the next x, else we delete xi and backtrack to the previous partial solution \((x_1,\dots, x_{i-1})\).

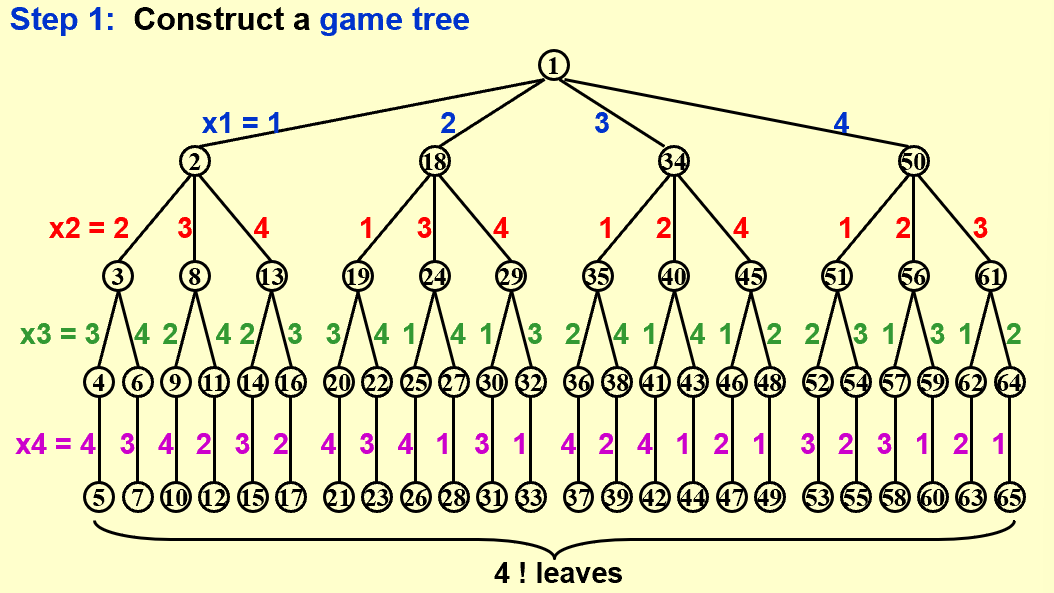

Eight Queens

Note

alt text

Perform a depth-first search(oost-order traversal) to examine the paths

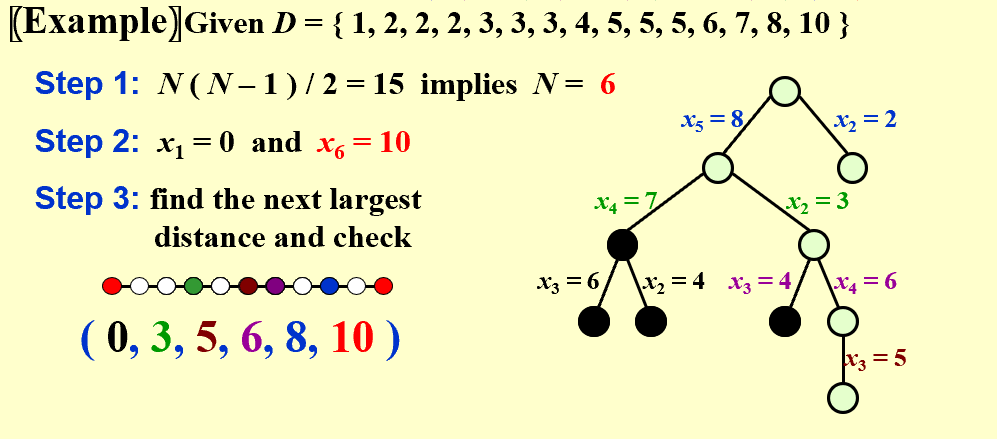

The Turnpike Reconstruction Problem

  • Problem:

    Given N points on the x-axis with coordinates \(x_1 < x_2 <\dots< x_N\). Assume that \(x_1 = 0\). There are \(N(N–1)/2\) distances between every pair of points.
    Given \(N(N–1)/2\) distances. Reconstruct a point set from the distances.

Note

alt text

LessCss
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
   bool Reconstruct ( DistType X[ ], DistSet D, int N, int left, int right )
   { /* X[1]...X[left-1] and X[right+1]...X[N] are solved */
       bool Found = false;
       if ( Is_Empty( D ) )
           return true; /* solved */
       D_max = Find_Max( D );
       /* option 1：X[right] = D_max */
       /* check if |D_max-X[i]| \in D is true for all X[i]’s that have been solved */
       OK = Check( D_max, N, left, right ); /* pruning */
       if ( OK ) { /* add X[right] and update D */
           X[right] = D_max;
           for ( i=1; i<left; i++ )  Delete( |X[right]-X[i]|, D);
           for ( i=right+1; i<=N; i++ )  Delete( |X[right]-X[i]|, D);
           Found = Reconstruct ( X, D, N, left, right-1 );
           if ( !Found ) { /* if does not work, undo */
               for ( i=1; i<left; i++ )  Insert( |X[right]-X[i]|, D);
               for ( i=right+1; i<=N; i++ )  Insert( |X[right]-X[i]|, D);
           }
       }
       /* finish checking option 1 */
       if ( !Found ) { /* if option 1 does not work */
               /* option 2: X[left] = X[N]-D_max */
               OK = Check( X[N]-D_max, N, left, right );
               if ( OK ) {
                   X[left] = X[N] – D_max;
                   for ( i=1; i<left; i++ )  Delete( |X[left]-X[i]|, D);
                   for ( i=right+1; i<=N; i++ )  Delete( |X[left]-X[i]|, D);
                   Found = Reconstruct (X, D, N, left+1, right );
                   if ( !Found ) {
                       for ( i=1; i<left; i++ ) Insert( |X[left]-X[i]|, D);
                       for ( i=right+1; i<=N; i++ ) Insert( |X[left]-X[i]|, D);
                   }
               }
               /* finish checking option 2 */
           } /* finish checking all the options */

           return Found;
       }
LessCss
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
   bool Backtracking ( int i )
   {   Found = false;
       if ( i > N )
           return true; /* solved with (x1, …, xN) */
       for ( each xi \in Si ) {
           /* check if satisfies the restriction R */
           OK = Check((x1, …, xi) , R ); /* pruning */
           if ( OK ) {
               Count xi in;
               Found = Backtracking( i+1 );
               if ( !Found )
                   Undo( i ); /* recover to (x1, …, xi-1) */
           }
           if ( Found ) break;
       }
       return Found;
   }

Tic-Tac-Toe

  • Minimax Strategy:

    Use an evaluation function to quantify the "goodness" of a position. For example: \(f(P)=W_{Computer}-W_{Human}\) where \(W_{Computer}\) is the number of ways the computer can win and \(W_{Human}\) is the number of ways the human can win.
    The computer will choose the move that maximizes the evaluation function, while the human will choose the move that minimizes the evaluation function.
    \(\alpha-\beta\) pruning is a technique to reduce the number of nodes that need to be evaluated in the search tree, with \(\alpha\) indicates that if the min stage has a value less than \(\alpha\), the max stage will not choose it, hence the child of the smaller node in min stage can be pruned. And \(\beta\) indicates that if the max stage has a value greater than \(\beta\), the min stage will not choose it, hence the child of the larger node in max stage can be pruned.
    when both techniques are combined. In practice, it limits the searching to only \(O(\sqrt N)\) nodes, where N is the size of the full game tree.
