Parallel Algorithm

:material-circle-edit-outline: 约 474 个字 :fontawesome-solid-code: 42 行代码 :material-image-multiple-outline: 8 张图片 :material-clock-time-two-outline: 预计阅读时间 5 分钟

Intro

• Parallelism:

  Machine Parallelism: Processor, Pipelining, Very-Long-Instruction-Word (VLIW), etc Parallel Algorithm: Today's topic

• Discription:

  PRAM: Parallel Random Access Machine
  WD: Work Depth Model

• PRAM:

  multi processors, shared memory, parallel read/write, concurrent execution, etc.

• Avoid Conflicts:

  EREW: Exclusive Read Exclusive Write
  CREW: Concurrent Read Exclusive Write
  CRCW: Concurrent Read Concurrent Write, three rules arbitrary, common(when trying to write the same value), priority(P with the smallest number)

• Example:

IllustrationSeudo Code

for P_i ,  1 <=i <= n  pardo
  B(0, i) := A( i )
  for h = 1 to log n do
    if i <= n/pow(2,h)
      B(h, i) := B(h-1, 2i-1) + B(h-1, 2i)
    else stay idle
  for i = 1: output B(log n, 1); for i > 1: stay idle

\(T(N)=\log N+2\), because different i are send to different processors and executed simultaneously, therefore only h shall be taken into consideration.

The prblems are obvious:
1. Does not reveal how the algorithm will run on PRAMs with different number of processors
2. Fully specifying the allocation of instructions to processors requires a level of detail which might be unnecessary

• WD: Layer by layer


     for Pi ,  1 <= i <= n  pardo
        B(0, i) := A( i )
     for h = 1 to log n
         for Pi, 1 <= i <= n/pow(2,h)  pardo
             B(h, i) := B(h-1, 2i-1) + B(h-1, 2i)
     for i = 1 pardo
        output  B(log n, 1)


Measuring the Performance of Parallel Algorithms

Work Load: total number of operations: \(W(N)\)
Worst Case Running Time: \(T(N)\)
\(P(n) = W(n)/T(n)\) processors and \(T(n)\) time (on a PRAM)
\(W(n)/p\) time using any number of \(p ≤ W(n)/T(n)\) processors (on a PRAM) \(O(W(n)/p + T(n))\) time using any number of p processors (on a PRAM)

• Let's take a look back to the previuos example pf WD.
• Work Load:

  \(W(n)=n+n/2+n/4+\dots+n/2^k+1\), where \(k=\log n\)

WD-presentation Sufficiency Theorem

An algorithm in the WD mode can be implemented by any \(P(n)\) processors within \(O(W(n)/P(n) + T(n))\) time, using the same concurrent-write convention as in the WD presentation.

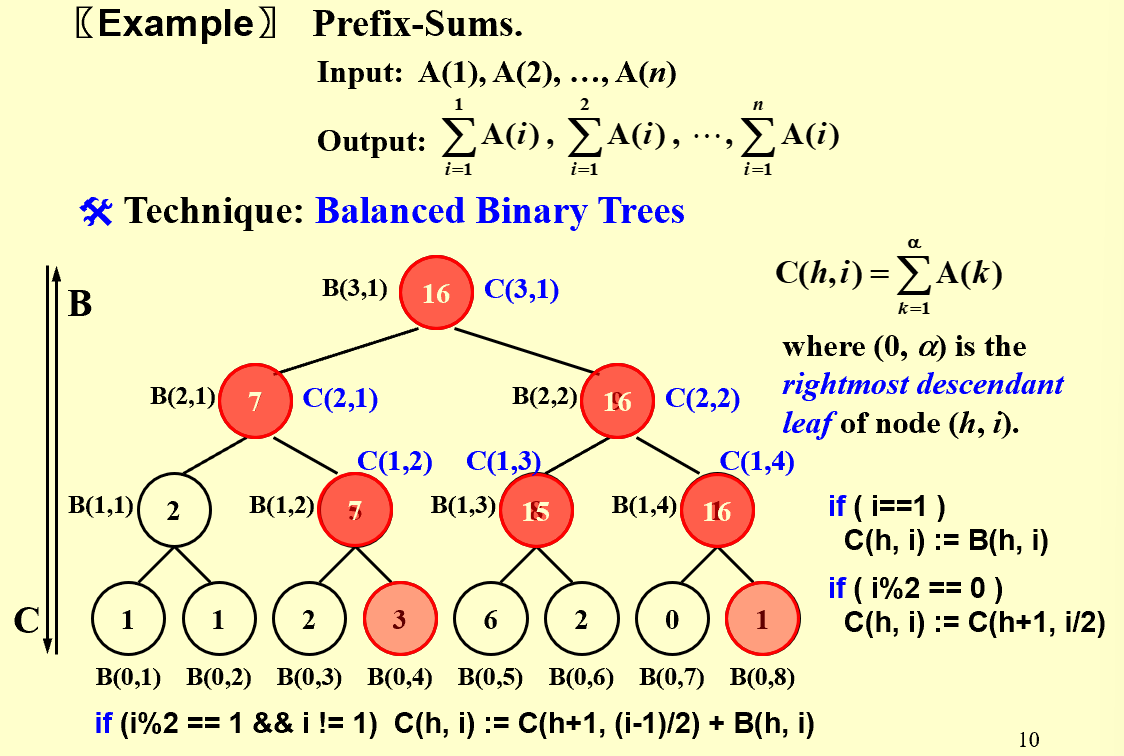

Prefix Computations

Illustration

• Remember when constructing thew whole tree, construct step by step

   for Pi , 1 <= i <=n pardo
     B(0, i) := A(i)
   for h = 1 to log n
     for i , 1 <= i <= n/2h pardo
       B(h, i) := B(h - 1, 2i - 1) + B(h - 1, 2i)
   for h = log n to 0
     for i even, 1 <= i <= n/2h pardo
       C(h, i) := C(h + 1, i/2)
     for i = 1 pardo
       C(h, 1) := B(h, 1)
     for i odd, 3 <= i <= n/2h pardo
       C(h, i) := C(h + 1, (i - 1)/2) + B(h, i)
   for Pi , 1 <= i <= n pardo
     Output C(0, i)

* \(T(n)=O(\log n)\), \(W(n)=O(n)\)

Merging

• Merge two non-decreasing arrays \(A(1), A(2), …, A(n) and B(1), B(2),\dots, B(m)\) into another non-decreasing array \(C(1), C(2),\dots, C(n+m)\)

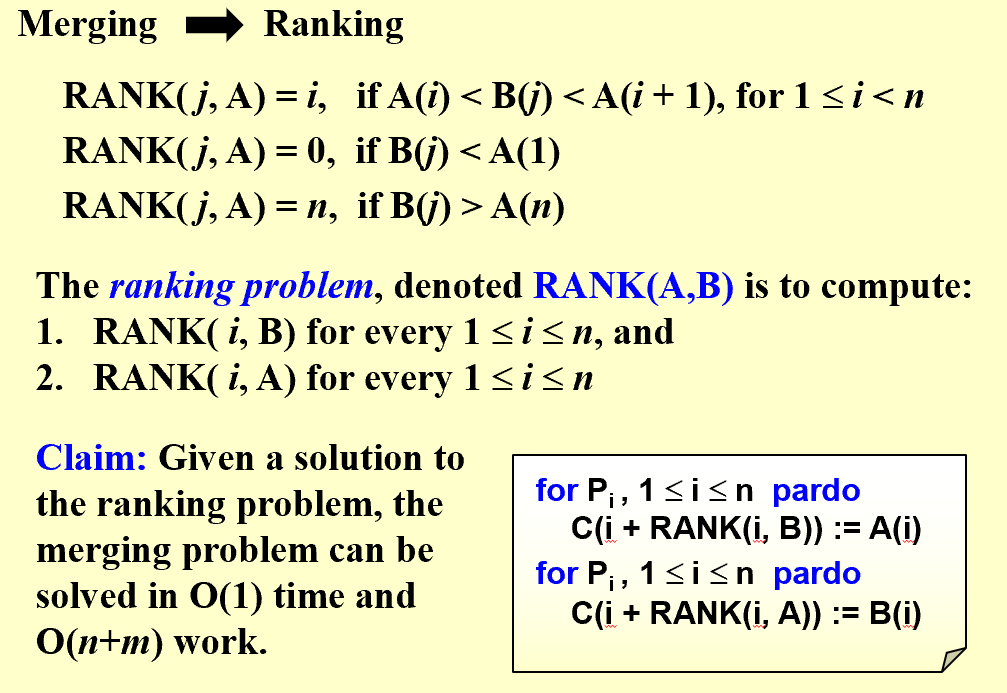

• To solve this problem in parallel, we need a rank(acknowlege where to put it, thus not altering C)

Illustration

• It's OK to use binary search or serial ranking.\, but they either increases workload or time consumed.
• Parallel Ranking:

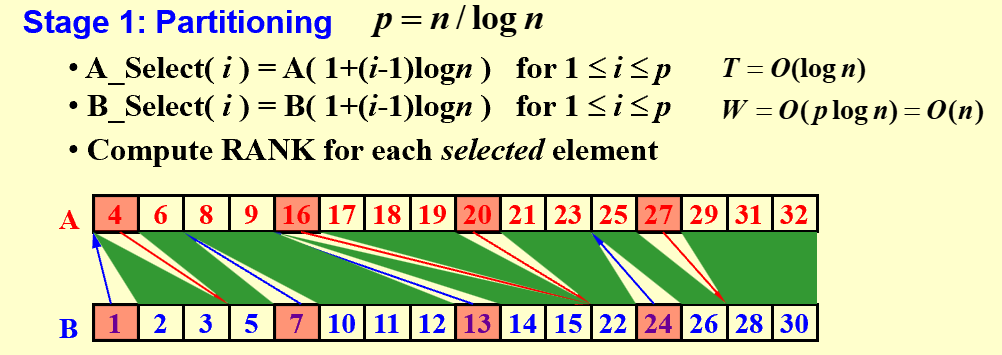

step 1

Tip

Use BS in the first search

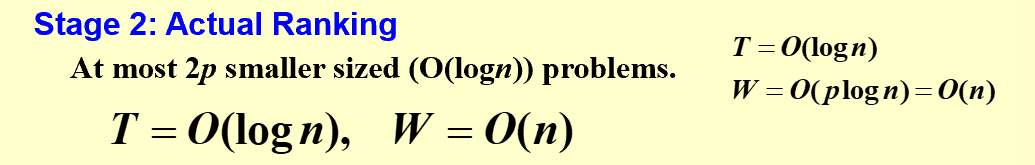

step 2

Tip

Maximum Finding

• Simple Solution: Replace “+” by “max” in the summation algorithm \(-> T(n)=O(\log n)\), \(W(n)=O(n)\)
• or we can compare all pairs of elements in parallel, but how to deal with conflicts?

      for Pi , 1 <= i <= n  pardo
          B(i) := 0
      for i and j, 1 <=i, j <=n  pardo
          if ( (A(i) < A(j)) || ((A(i) = A(j)) && (i < j)) )
                  B(i) = 1
          else B(j) = 1
      for Pi , 1 <=i <= n  pardo
          if B(i) == 0
             A(i) is a maximum in A

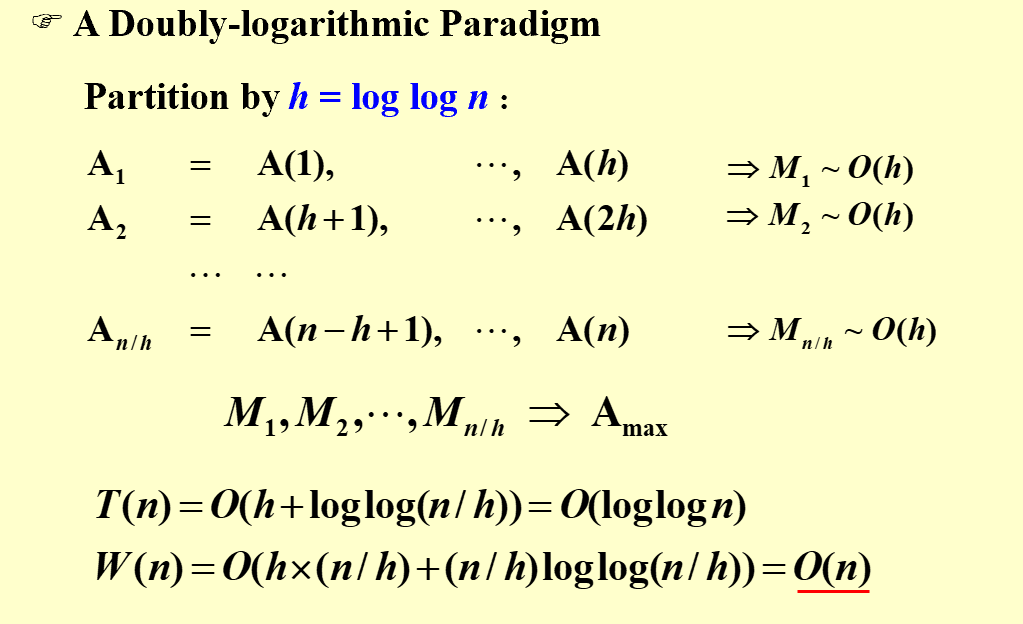

A Doubly-logarithmic Paradigm(Recursive)

Note

Partition by \(h=\log\log n\)

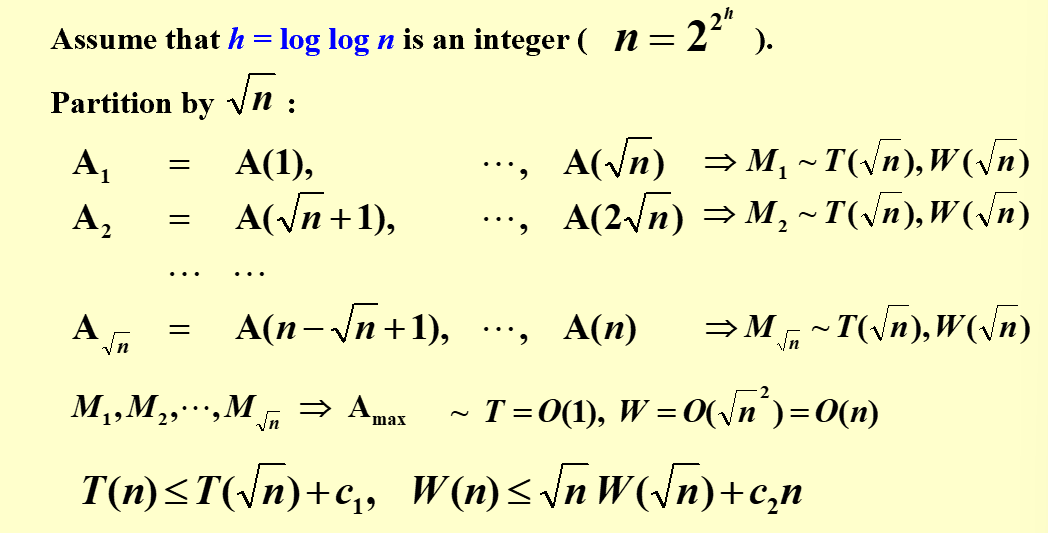

Note

• Then,here comes the question: Is it possible to have a \(O(1)\) time complexity?

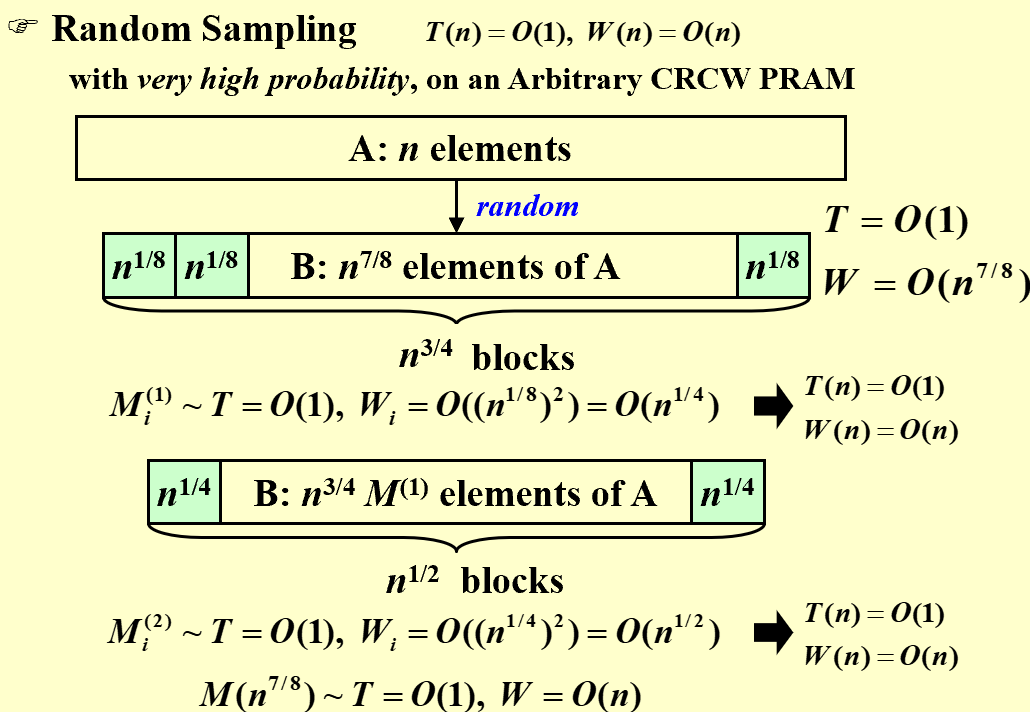

Solution

Theorem: The algorithm finds the maximum among n elements. With very high probability it runs in O(1) time and O(n) work. The probability of not finishing within this time and work complexity is \(O(1/n^c)\) for some positive constant c.
