Leftist Heaps and Skewed Heaps

:material-circle-edit-outline: 约 193 个字 :fontawesome-solid-code: 30 行代码 :material-image-multiple-outline: 3 张图片 :material-clock-time-two-outline: 预计阅读时间 2 分钟

Intro

  • Definition:

    The null path length, \(Npl(X)\), of any node X is the length of the shortest path from X to a node without two children. Define \(Npl(NULL)=–1\).
    \(Npl(X) = min { Npl(C) + 1 for all C as children of X }\)
    The leftist heap property is that for every node X in the heap, the null path length of the left child is at least as large as that of the right child.

  • Theorem:

    A leftist tree with r nodes on the rightmost path must have at least \(2^r-1\) nodes.

Implementation

LessCss
1
2
3
4
5
6
7
   struct TreeNode
   {
    ElementType     Element;
    PriorityQueue       Left;
    PriorityQueue       Right;
    int         Npl;
   } ;
LessCss
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
   PriorityQueue  Merge ( PriorityQueue H1, PriorityQueue H2 )
   {
    if ( H1 == NULL )   return H2;
    if ( H2 == NULL )   return H1;
    if ( H1->Element < H2->Element )  return Merge1( H1, H2 );
    else return Merge1( H2, H1 );
   }
   static PriorityQueue
   Merge1( PriorityQueue H1, PriorityQueue H2 )
   {
    if ( H1->Left == NULL )     /* single node */
        H1->Left = H2;  /* H1->Right is already NULL
                    and H1->Npl is already 0 */
    else {
        H1->Right = Merge( H1->Right, H2 );     /* Step 1 & 2 */
        if ( H1->Left->Npl < H1->Right->Npl )
            SwapChildren( H1 ); /* Step 3 */
        H1->Npl = H1->Right->Npl + 1;
    } /* end else */
    return H1;
   }

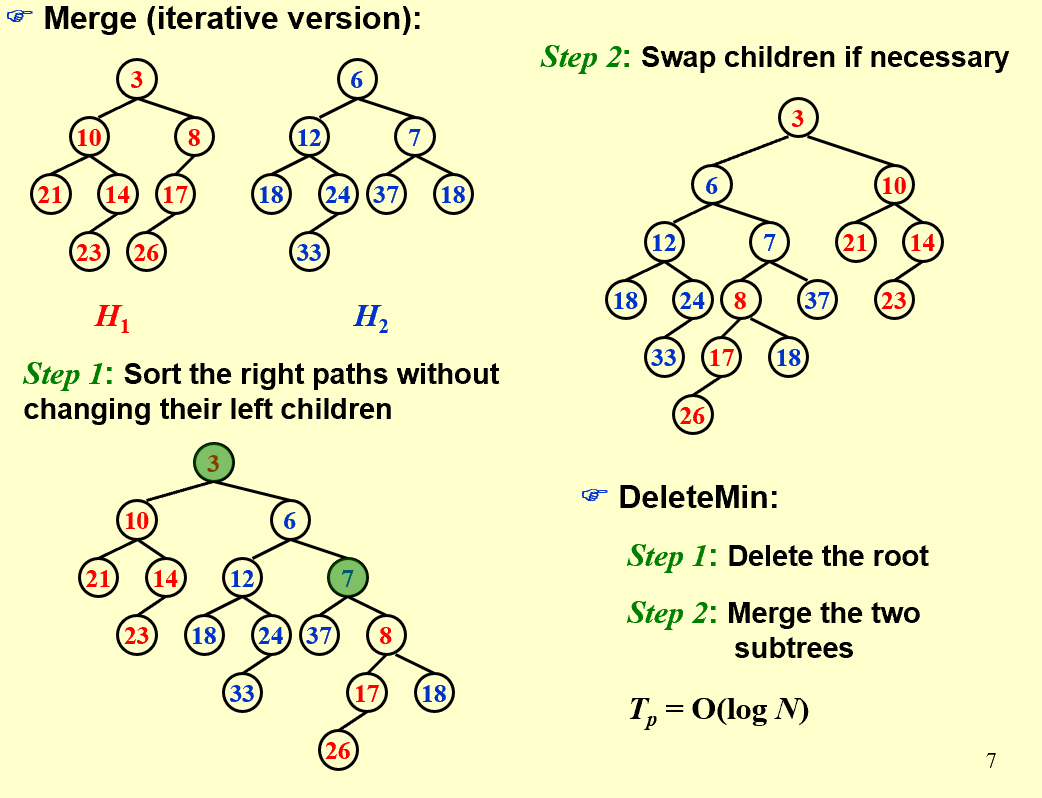

Note

alt text

Easy to illustrate yet hard to implement

Skewed Heap

  • Definition:

    Always swap the left and right children except that the largest of all the nodes on the right paths does not have its children swapped. \(No Npl\)
    Skew heaps have the advantage that no extra space is required to maintain path lengths and no tests are required to determine when to swap children.
    It is an open problem to determine precisely the expected right path length of both leftist and skew heaps.

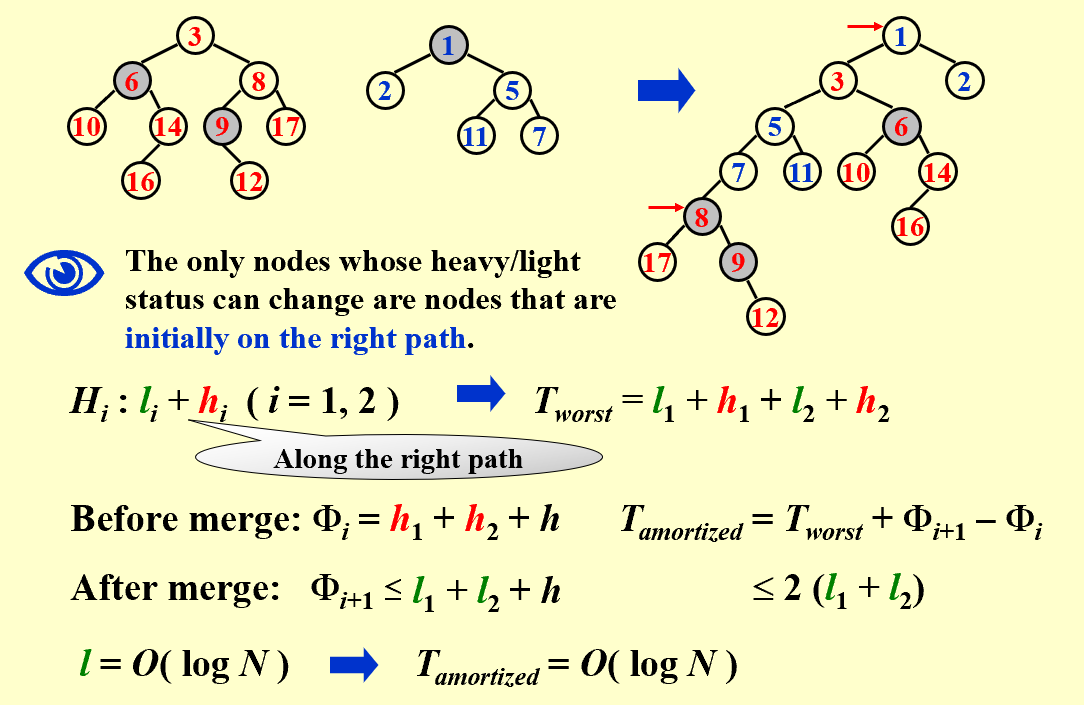

  • Amortized Analysis:

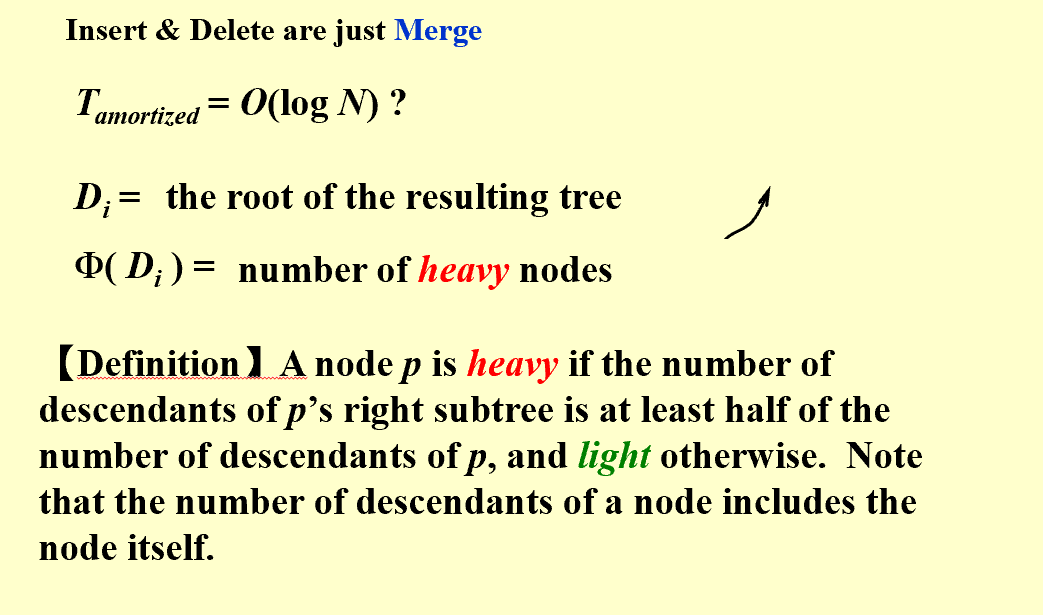

Proof

alt text
Please bear in mind that the rightmost path theorem
alt text
