Dynamic Programming

:material-circle-edit-outline: 约 161 个字 :fontawesome-solid-code: 44 行代码 :material-image-multiple-outline: 2 张图片 :material-clock-time-two-outline: 预计阅读时间 2 分钟

Intro

• Fibonacci Numbers

  The problem is, normal recursion will calculate the same subproblem multiple times, which is not efficient.
  DP solution:


     int  Fibonacci ( int N )
     {   int  i, Last, NextToLast, Answer;
         if ( N <= 1 )  return  1;
         Last = NextToLast = 1;    /* F(0) = F(1) = 1 */
         for ( i = 2; i <= N; i++ ) {
             Answer = Last + NextToLast;   /* F(i) = F(i-1) + F(i-2) */
             NextToLast = Last; Last = Answer;  /* update F(i-1) and F(i-2) */
         }  /* end-for */
         return  Answer;
     }


---

Ordering Matrix Multiplications

• Problem:

  Given a sequence of matrices to be multiplied, determine the order in which to carry out the multiplications so as to minimize the number of multiplications.

• Solution:

  If we have \(n\) matrices, \(b_n=\sum_{i=1}^{n-1}b_ib_{n-i}, where b_n=\text{different way to compute the sequence of n matrices}\), and if we do normal iteration to deal with this problem, the time complexity will be \(O(\frac{4^n}{n\sqrt{n}})\)

• DP solution:


      void OptMatrix( const long r[ ], int N, TwoDimArray M )
      {   int  i, j, k, L;
          long  ThisM;
          for( i = 1; i <= N; i++ )   M[ i ][ i ] = 0;
          for( k = 1; k < N; k++ ) /* k = j - i */
              for( i = 1; i <= N - k; i++ ) { /* For each position */
          j = i + k;    M[ i ][ j ] = Infinity;
          for( L = i; L < j; L++ ) {
              ThisM = M[ i ][ L ] + M[ L + 1 ][ j ]
                  + r[ i - 1 ] * r[ L ] * r[ j ];
              if ( ThisM < M[ i ][ j ] )  /* Update min */
              M[ i ][ j ] = ThisM;
          }  /* end for-L */
              }  /* end for-Left */
      }


  The time conplexity is \(O(N^3)\)

---

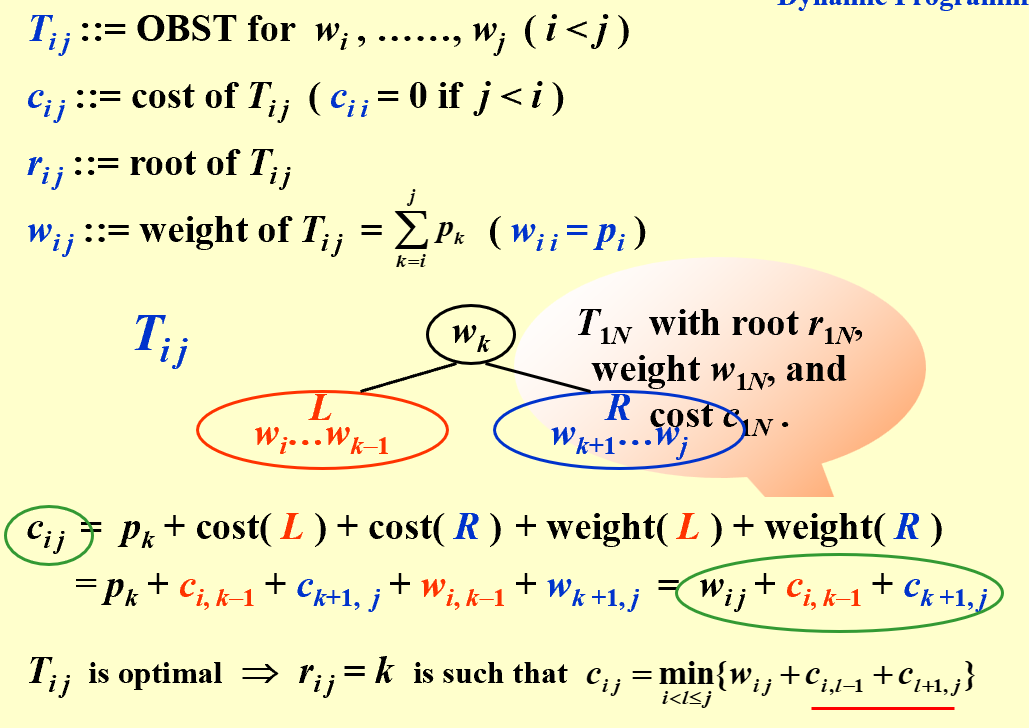

Optimal Binary Search Tree

Note

Ultilize the recursive essence of a tree

---

All-Pairs Shortest Path

• Problem:

  For all pairs of vi and vj ( i  j ), find the shortest path between.

• Solution:

  Single-source algorithm-> \(O(|V|^3)\)

• A more clever DP when coping dense graphs： 、

     /* A[ ] contains the adjacency matrix with A[ i ][ i ] = 0 */
     /* D[ ] contains the values of the shortest path */
     /* N is the number of vertices */
     /* A negative cycle exists iff D[ i ][ i ] < 0 */
     void AllPairs( TwoDimArray A, TwoDimArray D, int N )
     {   int  i, j, k;
         for ( i = 0; i < N; i++ )  /* Initialize D */
              for( j = 0; j < N; j++ )
       D[ i ][ j ] = A[ i ][ j ];
         for( k = 0; k < N; k++ )  /* add one vertex k into the path */
              for( i = 0; i < N; i++ )
       for( j = 0; j < N; j++ )
          if( D[ i ][ k ] + D[ k ][ j ] < D[ i ][ j ] )
          /* Update shortest path */
           D[ i ][ j ] = D[ i ][ k ] + D[ k ][ j ];
     }


  Reduce the time of sorting, unlike djikstra

---

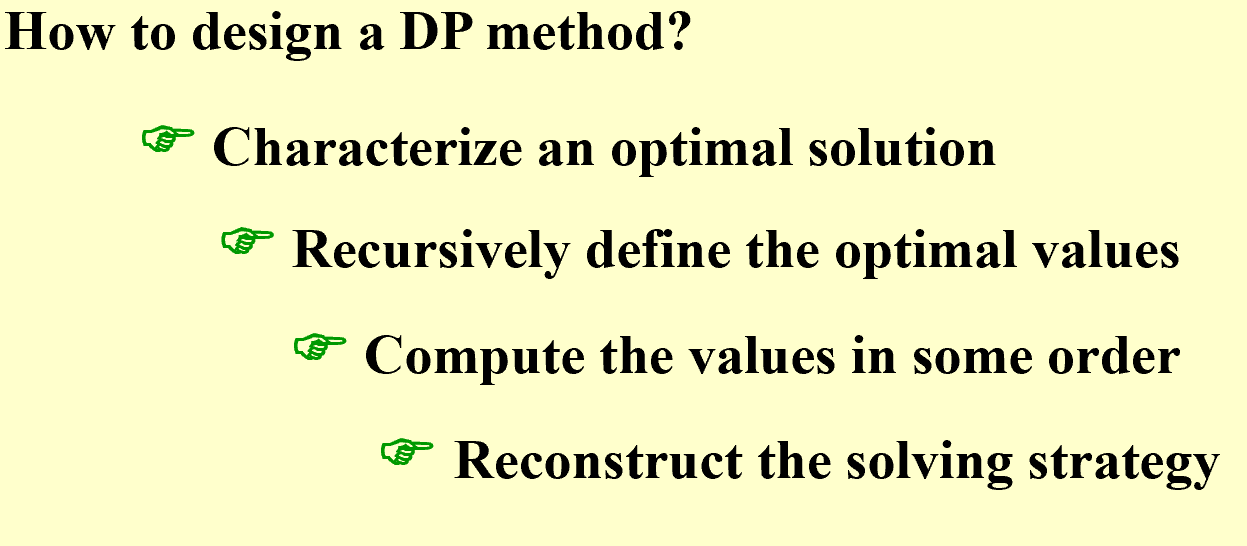

Conclusion

• DP:

Note
